Marine Loading Arms
Advanced marine transfer solutions designed for high safety, operational reliability, and maximum performance.

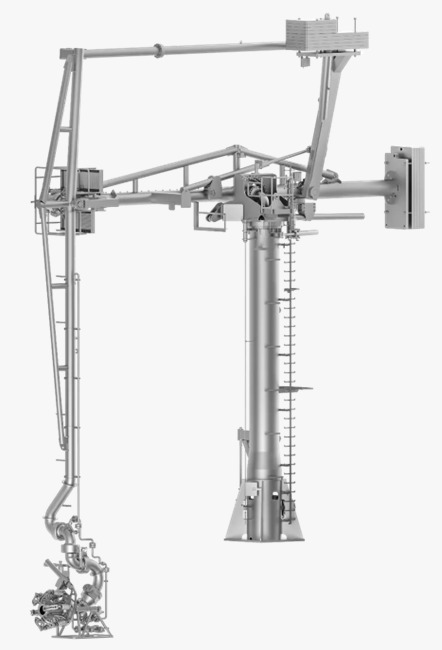

LNG Marine Loading Arm
High-pressure LNG transfer solution with lightweight structural design, SIL-certified safety systems, and precision monitoring technology.
- Operating pressure up to 150 barg
- HP-ERS & HP-EDC protection
- PLC redundancy control system
- Third-generation lightweight design
- Advanced CPMS integration

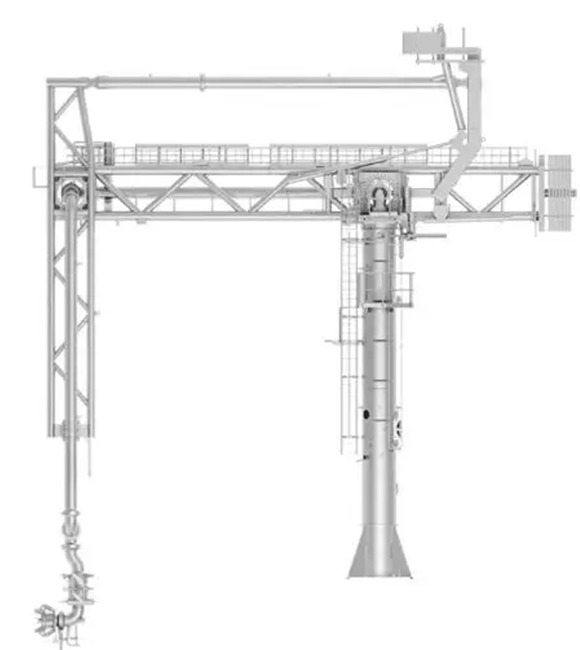

Cryogenic Marine Loading Arm
Engineered for LNG and liquid hydrogen transfer applications with exceptional low-temperature durability and operational safety.
- Operating temperature down to -196°C
- 304L / 316L stainless steel material
- Cryogenic ERS protection
- Rigid link pantograph system
- Low maintenance configuration

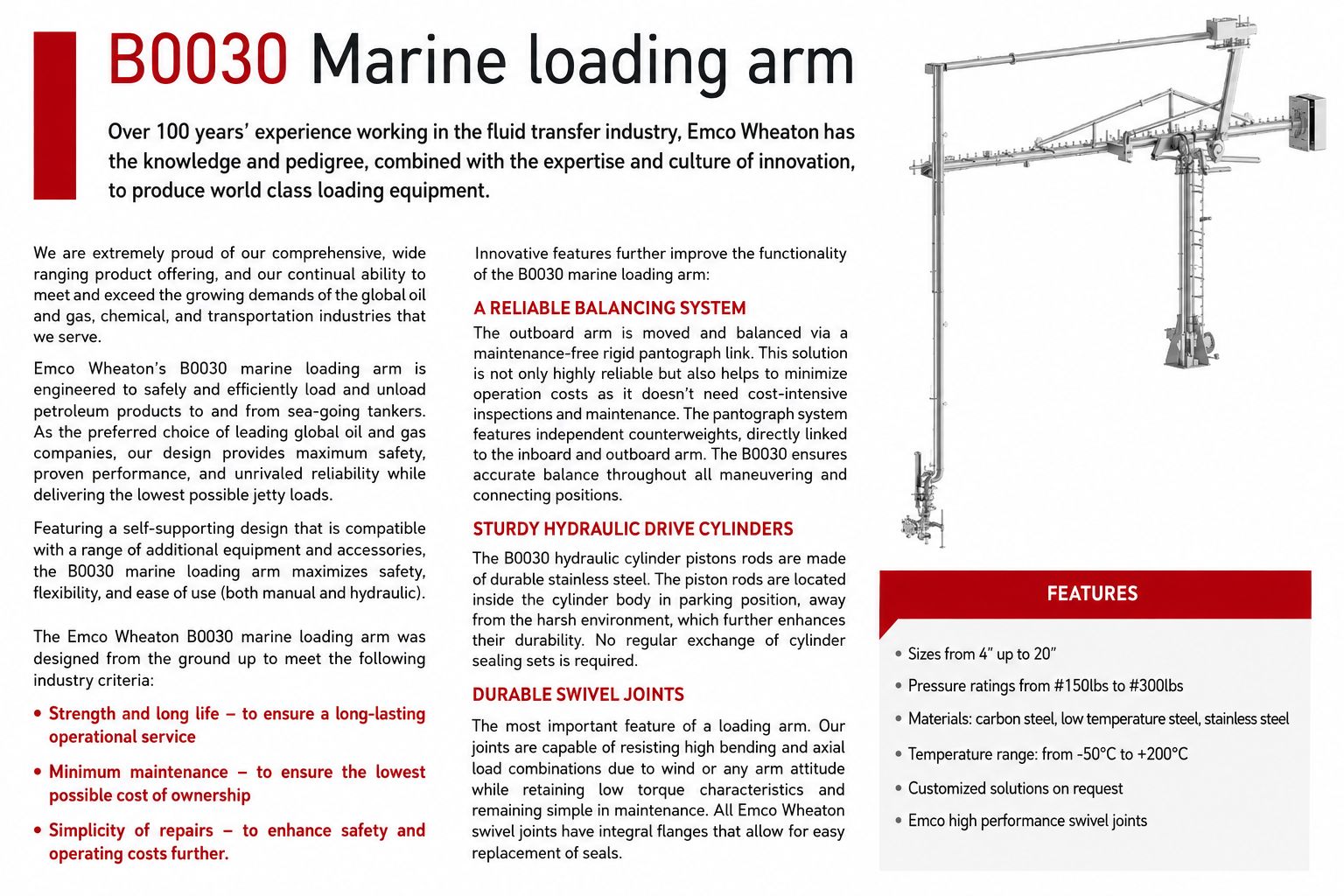

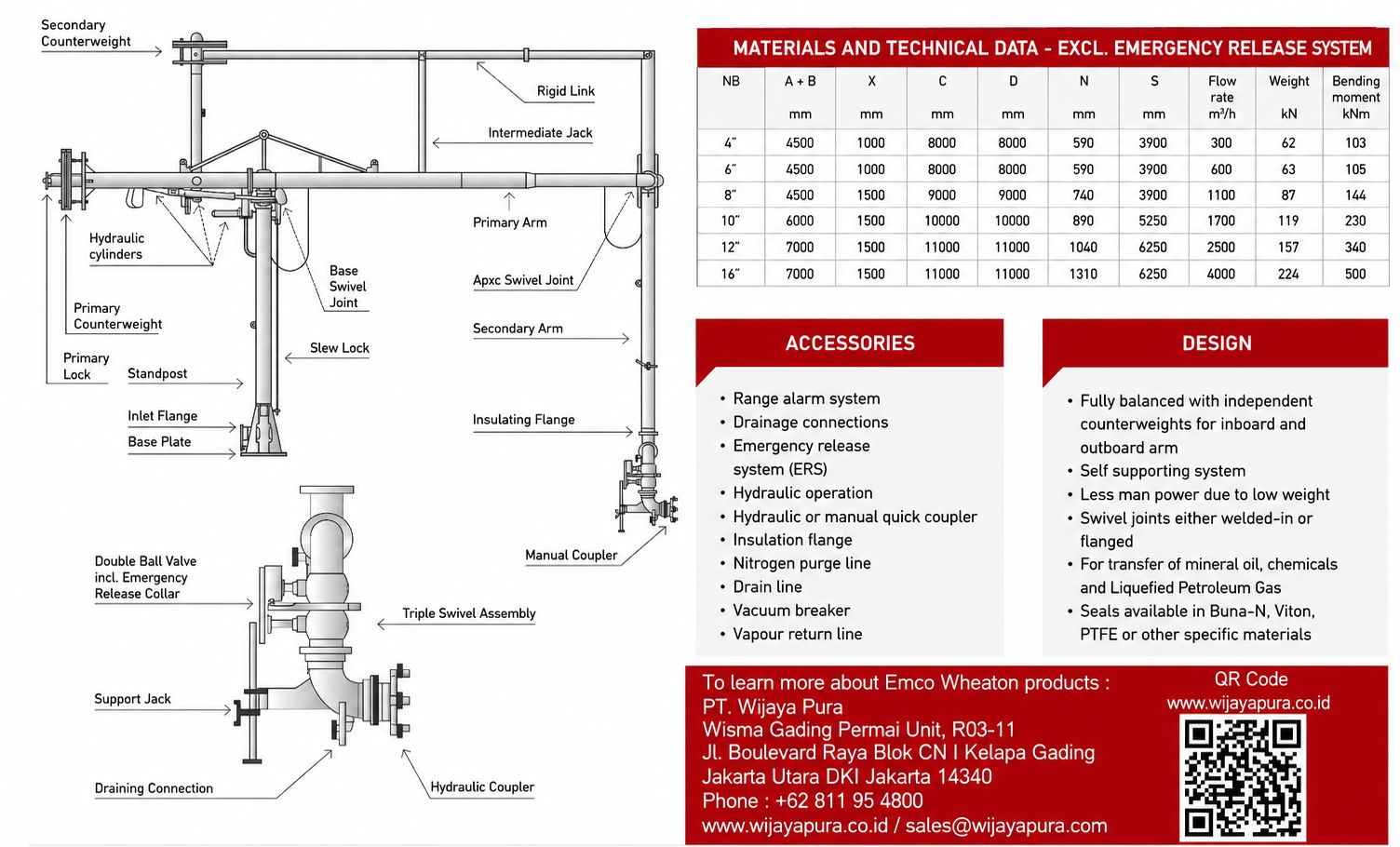

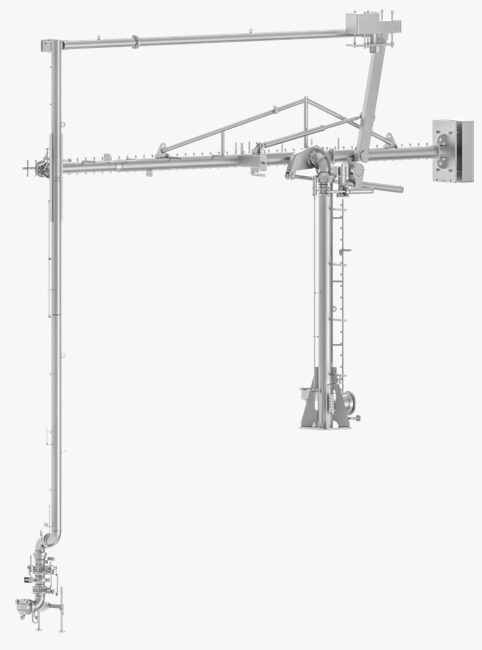

B0030 Marine Loading Arm
Versatile marine loading arm solution with robust construction and customizable configurations for various terminal applications.
- Sizes available from 4”–20”
- Carbon steel & stainless steel options
- High-performance swivel joints
- Custom engineering available
- Reliable long-term operation
Trusted Marine Loading Arm for Terminal Operations
Emco Wheaton B0030 Marine Loading Arm is one of the most widely used loading systems for safe and efficient fluid transfer operations in marine terminals worldwide.
